Three-Phase Switchboard: Is It Essential for AC Systems?

High-power ducted air conditioning systems can dramatically enhance comfort levels within a Brisbane home; however, they frequently require more electrical capacity than a standard single-phase supply can accommodate. This underscores the critical importance of a three-phase power upgrade. By switching to a three-phase system, homeowners can ensure their air conditioning operates at optimal efficiency, eliminating the risk of overwhelming their existing electrical infrastructure and preventing service interruptions.

This comprehensive guide delves into the key scenarios that warrant a three-phase upgrade, its significance for air conditioning performance, and its relationship with solar power systems. This is particularly relevant in Brisbane, where almost half of all households utilize solar panels. Understanding these factors can empower homeowners to make informed decisions about their electrical needs and optimize their living environment.

Understanding the Need for Three-Phase Power in Air Conditioning Systems

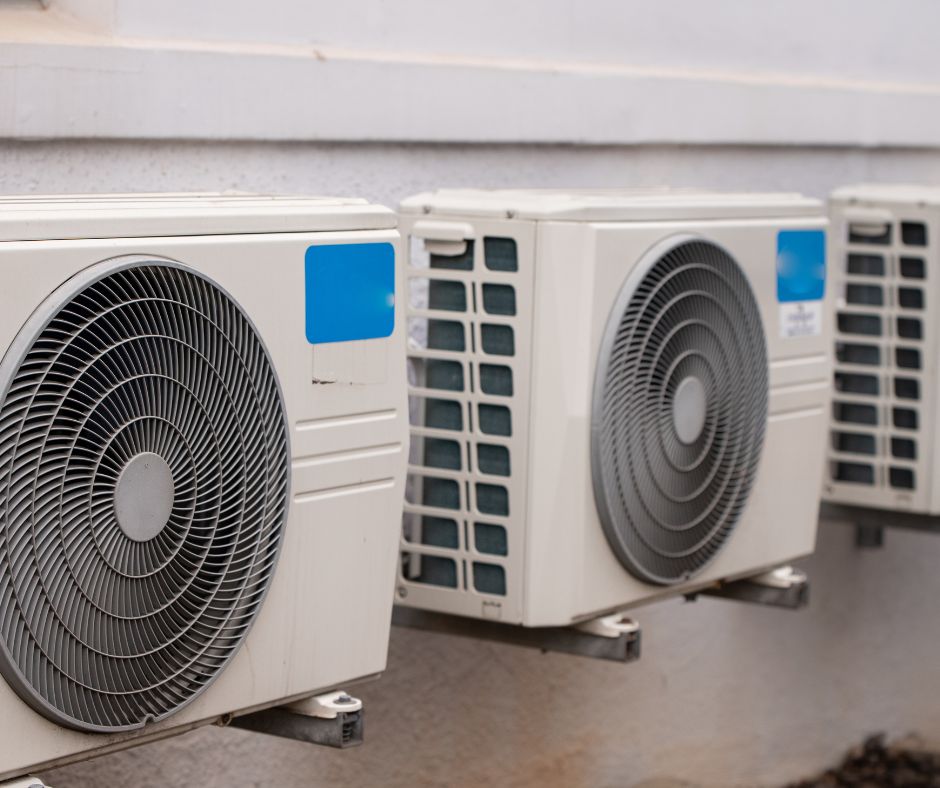

While many split system air conditioners and smaller ducted units can operate effectively on a single-phase supply, larger ducted systems that exceed a cooling capacity of 12–15kW demand a significant increase in power consumption. As energy needs rise, the constraints of a single-phase supply become apparent, potentially resulting in service interruptions and operational inefficiencies that can affect comfort levels.

Three-phase power systems are designed to evenly distribute the electrical load across three live wires rather than relying on a single phase. This sophisticated configuration provides a multitude of advantages, such as:

• Higher capacity systems can function smoothly without causing circuit breakers to trip, thereby minimizing the risk of system failures and enhancing overall performance.
• More stable voltage contributes to improved efficiency and lifespan of the air conditioning unit, ensuring that it operates consistently under varying conditions.
• Reduced strain on your entire electrical system, especially when other high-demand appliances are utilized simultaneously, promoting better energy management.

If you are in the process of constructing a large new home or upgrading to a more powerful air conditioning model, opting for a three-phase supply may be the safest and most compliant choice to satisfy your electrical demands in alignment with Australian Standards.

Identifying the Signs That Indicate a Three-Phase Upgrade is Essential for Air Conditioning

• You are planning to install a ducted system that exceeds 12–15kW, which necessitates more power than a single-phase supply can provide.
• Your electrician has indicated that your current single-phase supply is inadequate for the required load, highlighting the need for an upgrade.
• The manufacturer’s specifications explicitly state that three-phase power is a requirement for proper operation.
• You regularly operate other high-demand appliances, such as large pool pumps, welders, or commercial kitchen equipment, simultaneously with your air conditioning unit.

An electrical assessment conducted by a qualified electrician can determine whether your existing electrical supply meets the necessary demands or if a three-phase upgrade would significantly enhance the reliability and performance of your systems over the long term.

Exploring the Effective Integration of Solar Power with Three-Phase Systems

With over half of Brisbane households currently harnessing rooftop solar energy, many homeowners are seeking ways to expand their systems or integrate them with high-power appliances, including ducted air conditioning units. The synergy between solar power systems and three-phase upgrades can lead to substantial improvements in energy efficiency and overall system performance.

Typically, homes connected to a single-phase supply in Australia are limited to approximately 5–6.6kW of solar inverter capacity due to regulations set forth by most electricity distributors. If you intend to install a larger solar system, particularly those that exceed 10kW, transitioning to a three-phase connection may be essential to comply with network requirements and avoid potential export limitations that could hinder performance.

Utilizing three-phase power also offers additional benefits such as:

• Balancing solar generation across phases, which facilitates smoother grid export and enhances system reliability.
• Preventing voltage rise issues that could trigger solar inverters to trip, thereby maintaining consistent operation and minimizing disruptions.
• Enabling the operation of high-power appliances directly from solar energy without overloading any single phase, thus maximizing overall system efficiency.

If you are planning for both a large ducted air conditioning system and an expanded solar array, upgrading to three-phase power can greatly enhance operational efficiency, ensure compliance with relevant regulations, and optimize your capability to effectively utilize solar energy.

Step-by-Step Process for Upgrading to Three-Phase Power

The transition to three-phase power is typically a straightforward procedure when executed by a licensed electrician. The upgrade generally involves several critical steps:

1. Assessment – Evaluating your home’s load requirements, the specifications of your air conditioning system, and your solar energy plans to ensure compatibility and efficiency.
2. Distributor application – Submitting a formal request for approval from your local energy network provider, ensuring adherence to established regulations and standards.

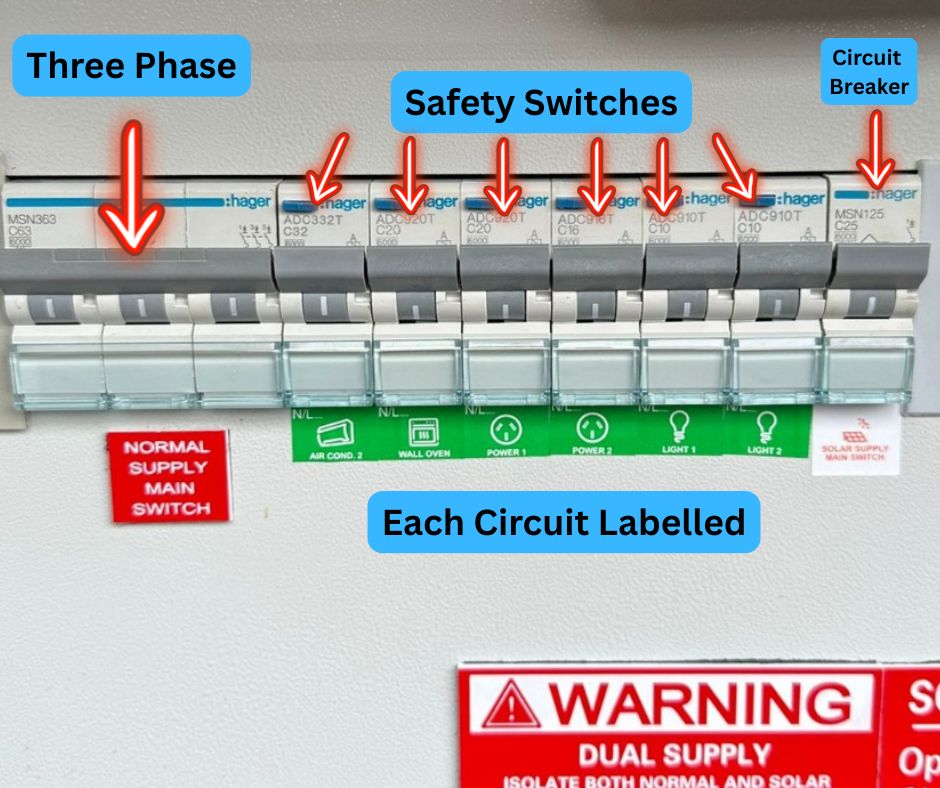

3. Switchboard upgrade – Installing a compliant three-phase switchboard along with necessary circuit protection measures to guarantee safety and efficiency during operation.
4. Final connection – Coordinating with your energy provider to seamlessly connect the new three-phase supply, ensuring minimal disruption to your service.

At Precision Electrical & Air, we are dedicated to managing the entire upgrade process from start to finish, ensuring that your air conditioning and solar systems are perfectly equipped to meet the demands of modern living and energy requirements effectively and reliably.

The Numerous Advantages of Upgrading to Three-Phase Power

Investing in a high-power ducted air conditioning system, especially in conjunction with an extensive solar installation, signifies that opting for three-phase power is not merely an upgrade; it is a commitment to reliability, efficiency, and enhanced performance. This upgrade ensures stable operation, significantly diminishes the risk of electrical complications, and provides the necessary capacity to operate your comfort systems without any compromises.

We specialize in the installation, upgrading, and maintenance of three-phase switchboards throughout Brisbane, ensuring seamless integration with solar and battery systems. Whether you are in the midst of building, renovating, or retrofitting your home, our expert team is prepared to design an electrical solution that keeps your home comfortable, energy-efficient, and ready for the future.
